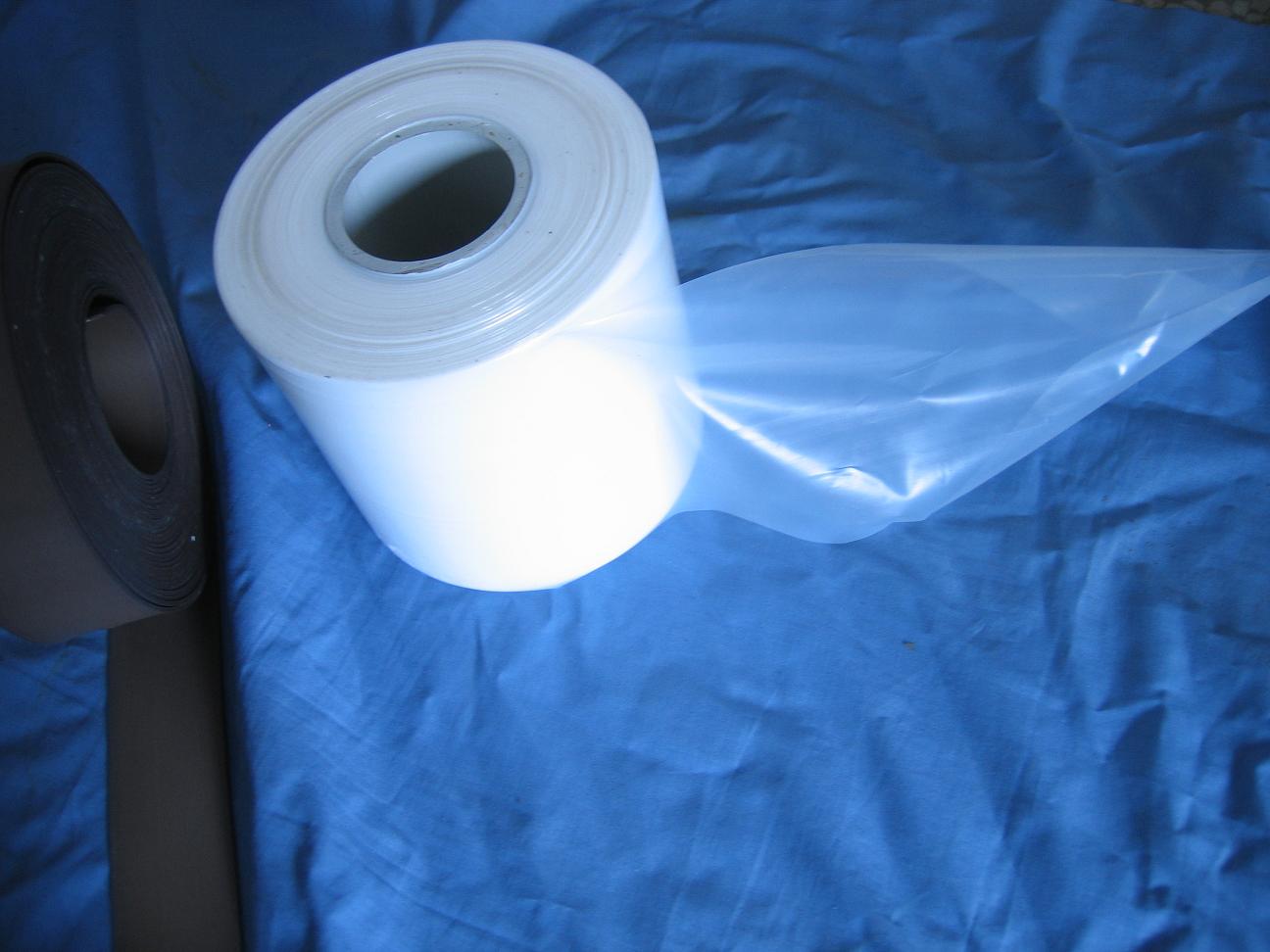

| Product Name: |
PTFE Film |
| Model No.: |
PTFE Film |
products teidian:
1.Features:ptfe rsin is first moulded into work-blank and then skived.It includes common film,high-density film and semi-density film .
2.Specifications:high-density: thickness 0.015-0.040,thickness allowance 10% lengh 100cmsemi-density:thickness 0.030-0.10,thickness allowance 10% lengh 100cmcommon:thickness 0.020-0.10,thickness allowance 10% lengh 100cm
3.Main properties:high-density:tensile strength30Mpa,elongation at rupture30%,Dc breakdown coltage(normal temperature):200KV/M average, the lowest value 40KV/M semi-density:tensile strength20Mpa,elongation at rupture60%,Dc breakdown coltage(normal temperature):60KV/M average, the lowest value 6KV/M common:tensile strength10Mpa,elongation at rupture100%,Dc breakdown coltage(normal temperature):30KV/M average.
4.Application:Wire insulation,electrical instrument insulation. |
|
|
|
|
|
