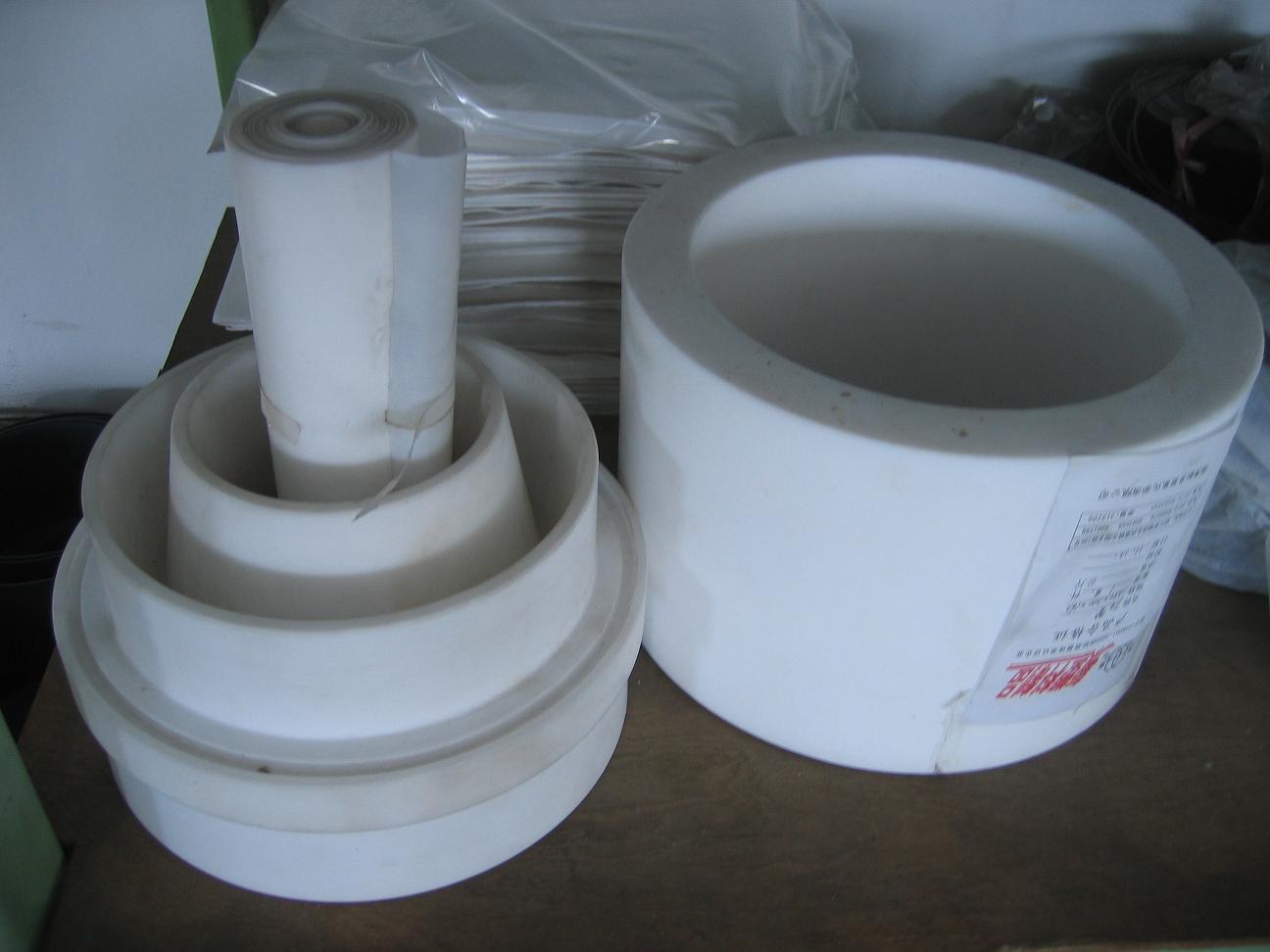

PTFE TUBE
Characteristic of the products:
PTFE Tube include PTFE moulded tube and extruded tube.
PTFE moulded pipe is made by PTFE resin moulded method in normal temperature, then sintered to many different sizes pipe.
PTFE extruded tube is made by plunger extrusion of suspension polymerized PTFE resin. Among all the existing plastics, PTFE has the best corrosion-resistance and dielectricity.
Use of the products:
Can be long term used under the temperature form 80+200.
It is the Lead insulating sleeve, corrosion-resistant pipe, and corrosion-resistant insulating pipe for different corrosive conditions, heat exchanger.
As a dielectricity material jacket of the lead
As a pipe which feeding the high corrosion liquid
Main technical data:
Project Name Target
Apparent density 2.102.30 g/cm3
Tensile strength (min) 15.0 Mpa
Ultimate elongation (min) 100 %
Moulded tube
Out diameter (mm) Inner diameter (mm) Length (mm)
17330 7240 100150
|
